Probes for turning & Grinding
LP2 and LP2H
Robust, compact probes for workpiece inspection and tool setting on CNC lathes.
About LP2 Probes
LP2, LP2H and LP2DD probes can be used in optical, inductive and hard-wired systems. Optical transmission is best suited to field retrofitting and optional fitment.
The optical transmission method requires either an OMP40M, RMP40M, OMP60M or an RMP60M. These provide a variety of solutions to suit different machine sizes, but each unit is functionally similar. They enable the probe to be turned on and off via an M-code, or turned on via an M-code and turned off via an internal timer.
The HSI interface unit processes signals between the probe and the CNC control.
LP Probe options

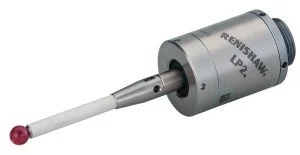

LP2 is the standard lathe inspection probe. Its small body makes it suitable for gauging workpiece features with restricted access.
LP2H is designed for heavier duty applications where machine vibration or heavy stylus arrangements may cause unexpected triggers.
LP2DD contains a revised diaphragm assembly, ideal for grinding machines and other installations where dust-filled coolant is abundant.

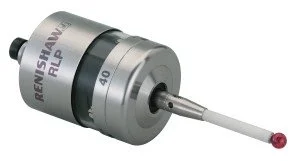

RLP40 compact touch probe
RLP40 pioneers the application of frequency hopping spread spectrum (FHSS) radio transmission in the turning centre environment.
About RLP40
Where line-of-sight between an optical inspection probe and interface cannot always be maintained the application of the RLP40 with an RMI interface unit maintains reliable communications.
The RLP40 is sealed to withstand the extreme environment of lathes and turning centres. A proven eyelid protection system prevents entry of swarf and chips that would cause damage to the internal components of the probe. The RLP40 is built to the highest of standards and offers a truly unrivalled combination of size, accuracy, reliability and robustness that will benefit its users through reduced set-up times, reduced fixture costs, reduced scrap and improved process control.
For lathes or machining centres where part features are inaccessible to the OLP40 and RLP40, Renishaw offers the OMP40M and RMP40M, which enable fitment of adaptors, extensions and Renishaw's LP2 touch probe.
RLP40 Feature and benefits
Compact and robust
Resistant to transmission interference
Ideal for retrofit
Eyelid protection
Miniaturisation
Providing a solution for all turning centres
RLP40 Software options
The following software packages can be used to program probing routines for work piece set-up and inspection on CNC machining centres
EasyProbe - entry-level package for simple work piece set-up
Inspection - basic set-up and work piece inspection cycles, with automatic update of offsets
Inspection Plus - an integrated suite of inspection cycles including vector measurement
Productivity+™ Active Editor Pro - a PC-based software package with GUI, allowing the user to select features directly from an imported CAD model, making the generation of probing cycles even easier.
